Features

1. For cutting Bakelite Board, Plastic Sheet. Acrylic Sheet, Fiber Sheet
and Wood Board.
2. The saw blade can move automatically for cutting operation, feed
speed can be adjusted.
3. Speed of the feed motor to the inverter control 3-30m/min.
4. The saw table can be set to automatic or manual, rails and pulley
design, linear motion accuracy.

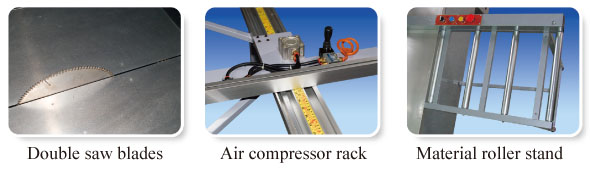

5. Air compressor rack using linear slider.
6. Dust collector is 3HP, be purchased separately.
7. Material automatic plate, be purchased separately.
8. Pictures for reference only, shipping mainly the real machine


Spec.

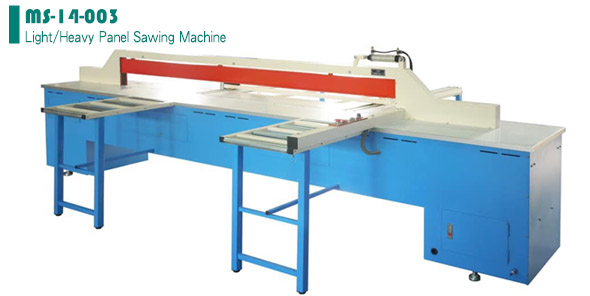

  • Item No.: MS-14-003
  • Main Saw Motor: 5~7.5 HP
  • Main Saw Blade Arbor: 25.4mm (1")
  • Spindle Rotation Speed: 6500 RPM
  • Dust Collector Motor: 3~5 HP
  • Saw Carriage Feed Motor: 4GN-12.5K
  • Saw Drive Belt: 422J
  • Saw Blade Diameter: 200~400mm
  • Saw Carriage Feed Speed: 0~30m / Min Max.
  • Height of Cut: 120mm Max.
  • Length of Cut: 1950mm
  • G.W.: 1000 KGS
  • N.W.: 850 KGS
  • Operation Dimension (L*W*H): 450X 200X75 (cm)
@
