Features

1. For cutting Bakelite Boards, Plastic Sheets, Acrylic sheets, Fiber
Sheet and wood board.

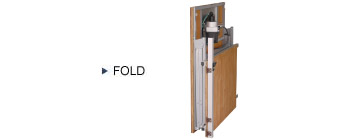

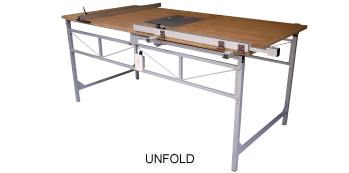

2. The table is foldable, space-saving, light weight, and easy to transport.
3. The base plate is also suitable for other brand hand saw machine.
4. The quick release base can change direction, easily operate for both handside.
5. The movable cutting table is equipped with pulleys, it is labor-saving
for installation and easy for operation.
6. Router can be installed on the base plate.
7. Hand carry sawdust suction & storage can be installed on the base plate,
be purchased separately.
8. Auxiliary stand can be installed on the base plate,be purchased separately.
9. Hoister of saw blade can be installed on the base plate, handle can
be purchased separately.
10. Tripod can fine-tune the high and low levels.
11. This machine is patents pending (any infringements prohibited).
12. Pictures for reference only, shipping mainly the real machine.

Spec.
  • Item No.: MS-10-002
  • Main Saw Motor: 1 1/4 HP
  • Spindle Rotation Speed: 7000 RPM
  • Saw Drive Belt: 170H843
  • Saw Blade Daimeter: 195mm ( 8 " )
  • Height of Cut: 70mm
  • G.W.: 35 KGS (saw machine is not included)
  • N.W.: 33 KGS (saw machine is not included)
  • Operation Dimension (L*W*H): 178×85×85 (cm)
  • Storage Dimension (L*W*H): 85×17.5×110 (cm)
  • Packing Carton Dimension (L*W*H): 25 * 110 * 175 (cm)
  • Packing Quantity: 20' Container Yd.- 100 sets 40' Container Yd.- 200 sets





The base plate can be easily opened and changed for left-handed user. The base plate is also suitable for other brands hand saw machine. Control Panel Router can be installed on the base plate. The movable cutting table is equipped with pulleys.
